Working Principle of a Worm Gearbox

The operating principle of a worm gearbox is based on the helical meshing transmission between the worm and the worm wheel. When the worm rotates under the power source, its helical teeth continuously mesh with the teeth of the worm wheel, driving the worm wheel to rotate. This process achieves power transmission and speed reduction.

Physical Principles of Worm Gear Transmission:

1. Helical Transmission Principle: The helical structure of the worm causes axial displacement during rotation, which is converted into circular motion of the worm wheel through meshing with the worm wheel. Typically, a single-stage worm gear reducer can achieve a transmission ratio range of 5:1 to 100:1, or even higher, which is difficult to achieve with other types of reducers.

2. Self-locking Transmission: Friction exists between the meshing surfaces of the worm and the worm wheel. When the worm's helix angle is small, the worm can drive the worm wheel, but the worm wheel cannot reversely drive the worm. This phenomenon is called "self-locking." Self-locking is a notable feature of worm gear reducers, making them particularly suitable for applications such as vertical lifting and hoisting equipment.

3. Speed Ratio Principle: The primary function of a worm drive gearbox is to reduce speed and increase output torque. A worm gear reducer achieves speed conversion through a gear ratio. For each revolution of the worm, the worm wheel rotates only a corresponding number of teeth, thereby reducing speed. Simultaneously, reducing speed increases output torque, allowing the worm gear to output greater torque and drive heavy-load equipment.

4. Energy Conversion and Efficiency: During operation, a worm gear box converts electrical energy from the motor into mechanical energy from the worm wheel through mechanical transmission. Transmission efficiency can be maximized through optimized design and manufacturing processes. High-quality worm gearboxes typically utilize precisely matched worms and wheels and high-quality lubricants to reduce wear, improve overall efficiency, and increase service life.

Significant Features of Worm Gear Reducers

Worm gear reducers stand out among other reducer types and are widely used in various industrial scenarios due to a series of unique and significant features:

1. Huge transmission ratio: This is one of the most prominent advantages of worm gear reducers. Single-stage transmission reduction ratios typically range from 5:1 to 100:1, while two-stage transmissions can achieve even higher reduction ratios max up to 10,000:1..They can significantly reduce high-speed input power while significantly increasing output torque, meeting the needs of high-torque, low-speed applications.

2. Compact Structure and Small Size: The unique meshing design of the worm and worm wheel makes the worm gearbox extremely compact, small in size, and lightweight. This design allows the worm gear reducer to occupy a small installation space, making it particularly suitable for space-constrained applications.

3. Smooth transmission and low noise: Because the worm and worm wheel mesh continuously, and a lubricating oil film is formed between the tooth surfaces during meshing, worm drive gearboxes feature smooth transmission, low vibration, low impact, and low noise during operation.

4. Good Self-Locking: As mentioned above, when the worm's helix angle is small, the industrial worm gearbox has a one-way self-locking function, meaning the worm gear cannot reverse the worm's rotation. This feature provides additional safety in applications such as lifting, hoisting, and conveying, where the load must be protected against reverse sliding.

5. Strong Adaptability and Versatility: worm gear gearboxes typically utilize high-quality aluminum alloy castings for excellent heat dissipation and rust resistance. Their versatile mounting configurations allow them to adapt to various installation orientations and spatial layouts. Furthermore, their wide range of transmission ratios and torque output capabilities enable them to be used with a wide range of mechanical equipment.

6. Relatively Simple Maintenance: High-quality worm gear reducers are typically factory-filled with long-life fully synthetic lubricant, and some models are even maintenance-free. Routine maintenance primarily involves checking the integrity of the seals, which is relatively simple and convenient.

The Wide Application of Worm Gear boxes

Due to their unique advantages, high-quality worm gear boxes have become an indispensable component of many mechanical equipment. Their applications span a wide range of scenarios, from traditional manufacturing to high-tech sectors:

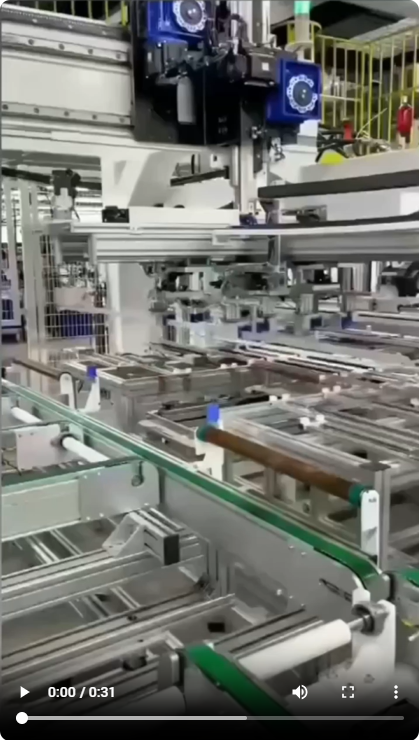

1. Industrial Automation and Robotics: High-precision, low-backlash precision worm gearboxes are commonly used to achieve precise and repeatable positioning, speed control, and high torque output. Their compact structure and excellent self-locking properties make them ideal for robotic gantry, automated handling equipment, and precision assembly lines.

2. Metallurgical and Mining Machinery: In heavy-duty equipment such as rolling mills and hoisting equipment in the metallurgical industry, as well as crushers, mills, and conveyors in the mining industry, worm drive gearboxes provide powerful torque output and stable transmission, ensuring reliable operation.

3. Chemical and Pharmaceutical Equipment: In chemical machinery such as agitators, reactors, and centrifuges, as well as pharmaceutical equipment such as mixers and dryers, worm drive gearboxes ensure stable production processes with their low noise, smooth transmission, and excellent sealing.

4. Light Industry and Food Machinery: In light industries such as food processing, packaging, textile, and printing machinery, worm reduction gear boxes are commonly used to achieve precise speed control and positioning, improving production efficiency and product quality.
5. Construction and Engineering Machinery: Large-diameter worm gearboxes provide essential speed reduction and torque amplification in construction and engineering machinery such as cranes, winches, and concrete mixers, ensuring the equipment can complete its operations safely and efficiently.

6. Transportation: Worm gear gearbox also play a vital role in transportation vehicles such as ships, automobiles, and locomotives, for example, in ship steering gear and windlasses, as well as in automobile steering systems.

7. Stage and Entertainment Equipment: Worm gearboxes, with their smooth operations and low noise levels, provide a better audience experience in entertainment equipment such as stage lifts, rotating platforms, and amusement rides.

Chenyue (Jiangsu) Technology Co., Ltd., leveraging its extensive experience in the worm gearbox field, provides high-performance, highly reliable worm drive gearbox products and solutions for these and other industries, meeting the stringent requirements of diverse application scenarios.

Key Points for Selecting High-Quality Worm Gear Boxes

Correct selection not only ensures that equipment performance requirements are necessary, but also avoids failures and additional costs caused by inappropriate selection. The following are key considerations when selecting worm drive gearbox:

1. Determine the gear ratio: First, calculate the required reduction ratio based on the required output speed and input speed. Worm gear gearboxes have a wide range of gear ratios, but the gear ratio closest to your actual needs should be selected to ensure the best match between efficiency and performance.

2. Calculate the output torque: Calculate the required output torque of the gearboxes based on factors such as load type, duty cycle, and starting torque. The rated output torque of the selected reducer should be greater than or equal to the calculated required torque, with a safety margin.

3. Consider the mounting method and space constraints: Worm gear reducers typically have a variety of mounting methods, such as base mounting, flange mounting, and shaft mounting. When selecting a reducer, consider the actual installation space and layout of the equipment to select the appropriate mounting method and frame size.

4. Operating environment: Consider the gearbox's operating environment, including ambient temperature, humidity, dust, and corrosive gases. High-temperature, humid, or harsh environments may require a reducer with a special protection grade or material. Also, consider the reducer's heat dissipation performance to ensure that the temperature does not rise excessively during extended operation.

5. Input and Output Shaft Orientation: The input and output shafts of a worm gear reducer are typically not coaxial or coplanar. When selecting a reducer, it's important to clearly determine their relative position and orientation to ensure smooth connection with the motor and driven equipment.

6. Lubrication and Maintenance: Understand the gearbox's lubrication methods and maintenance cycles. Some high-quality reducers utilize long-life lubricants, resulting in maintenance-free or low-maintenance requirements, thereby reducing operating costs. Maintenance convenience and cost should be considered when selecting a reducer.

7. Noise and Vibration Requirements: For applications with stringent noise and vibration requirements, select a worm drive reduction gearbox with low noise and vibration characteristics. Worm gearbox , due to their continuous meshing characteristics, generally offer excellent stability.

By comprehensively considering these factors and combining Chenyue Technology's expertise and product advantages in the industrial worm gears field, users can select the most suitable and highest-quality worm gear reducer for their equipment, ensuring long-term, efficient and stable operation.

Daily Maintenance and Care of Worm Gearboxes

Proper daily maintenance and care of worm gearboxes are crucial to ensuring long-term stable operation, extending their service life, and achieving optimal performance. Neglecting maintenance can lead to equipment failure, production interruptions, and unnecessary repair costs.

1. Regularly Check the Lubricant: Lubricant is the lifeblood of a worm gearbox and its quality and fluid level directly impact its operating efficiency and lifespan. Regularly check the lubricant's color, viscosity, and presence of impurities or deterioration. For newly commissioned reducers or newly replaced worm pairs, the lubricant should generally be replaced after 7-14 days of operation. Thereafter, the lubricant should be changed regularly based on usage and manufacturer recommendations. Chenyue Technology Co., Ltd.'s high-quality worm gearboxes are typically factory-filled with fully synthetic lubricant, eliminating the need for lubricant changes and ensuring unlimited use after factory refilling.

2. Control Operating Temperature: Reducers generate heat during operation. Excessive temperatures can degrade the lubricant's performance and even damage components. Regularly check the operating temperature of the reducer to ensure it remains within the allowable range. If the temperature rises abnormally, promptly identify the cause, such as poor lubrication, overload, or poor heat dissipation, and take appropriate measures. Chenyue Technology Co., Ltd.'s highly reliable worm gear reducers have an operating temperature range of -20°C to +40°C.

3. Check seals: Seals prevent lubricant leakage and external contaminants from entering the reducer. Regularly inspect seals for signs of aging, cracking, or damage, and replace them promptly.

4. Avoid overloading: Overloading is a major cause of reducer damage. Ensure the reducer operates within its rated load range and avoid prolonged or frequent overloads. When selecting a reducer, include a safety margin to account for possible transient overloads.

5. Regular cleaning and inspection: Keep the reducer's exterior clean, removing dust and oil, to aid heat dissipation. Regularly inspect the reducer, including checking for loose fasteners, unusual bearing noise, and tooth meshing. Any abnormalities detected should be addressed promptly or contact a qualified technician for repair.

6. Proper Installation and Commissioning: The quality of a reducer's installation has a decisive impact on its service life. During installation, ensure proper alignment between the reducer, motor, and driven equipment to avoid eccentricity or tilt. Before full operation, conduct a no-load test run and an intermittent test run at a partial rated load to check for abnormal noise, vibration, or overheating.

Conclusion

Chenyue (Jiangsu) Technology Co., Ltd., with over 30 years of experience in the industrial worm gears field, has not only accumulated extensive experience in R&D and manufacturing, but also  has successfully launched a number of internationally patented reducer products, filling the gap in the domestic orthogonal high-precision worm gear reducer industry through continuous innovation. Chenyue Technology as a worm gear reducer factory consistently adheres to market demand and focuses on technological innovation as its core competitiveness, striving to provide global customers with leading reduction system solutions and professional high-precision reducer products.

We hope this article will provide readers with a valuable reference for a deeper understanding of high-quality worm reduction gearbox. We look forward to collaborating with partners from all industries to explore the infinite possibilities of reducer technology.
